Instruction Manual

2

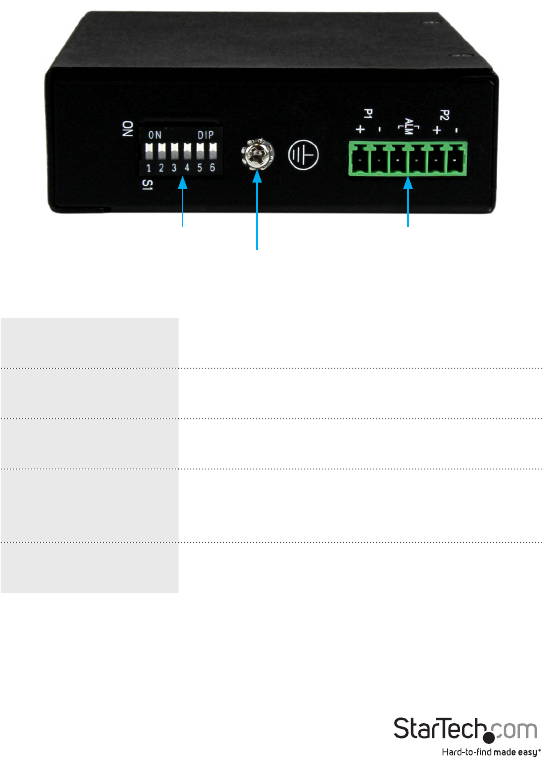

Top View

LED Indicators

1 x P1 (Power)

Solid (Green): Power is connected and functioning

O: No power input detected

1 x P2 (Power)

Solid (Green): Power is connected and functioning

O: No power input detected

1 x ALM (Alarm)

Solid (Red): Power failure detected

O: No alarm / alarm disabled

5 x Link / Act

Solid (Green): Link detected (no trac)

Flashing: Activity

O: No Link detected

5 x Speed

Solid (Yellow): 1000 Mbps connection detected

O: 10/100 Mbps or no link detected

DIP Switches

Ground Connector

Redundant Terminal Block

Power w/ Alarm Relay
