Instruction Manual

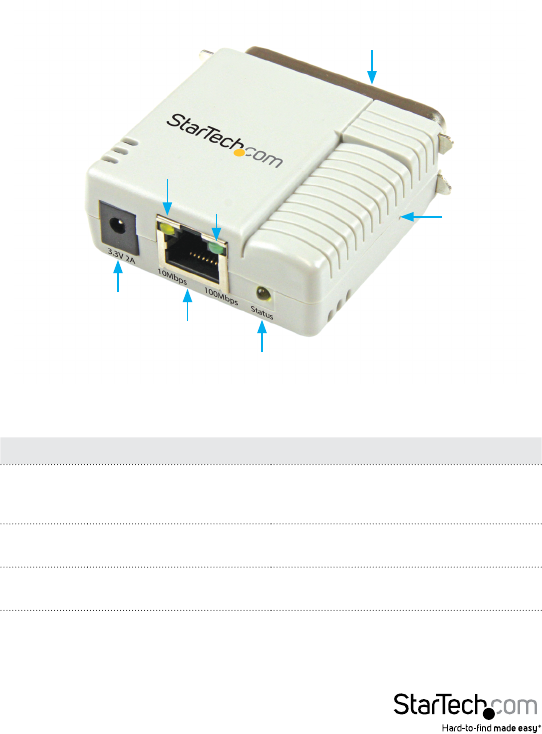

Product Overview

LED Indicators

LED State Indication

Status Blinking for POST (Yellow)

When power is connected, the Status

indicator will ash ve times, and then

go solid.

100Mbps On (Green)

LAN Port has a valid network connection

at 100Mbps.

10Mbps On (Yellow)

LAN Port has a valid network connection

at 10Mbps.

DC Jack

Ethernet

Port

Status LED

10Mbps

Indicator

100Mbps

Indicator

Reset Button

Centronics Printer

Connector
