Manual Revision: 08/15/2014
For the most up-to-date information, please visit: www.startech.com
DE: Bedienungsanleitung - de.startech.com
FR: Guide de l'utilisateur - fr.startech.com
ES: Guía del usuario - es.startech.com
IT: Guida per l'uso - it.startech.com
NL: Gebruiksaanwijzing - nl.startech.com
PT: Guia do usuário - pt.startech.com

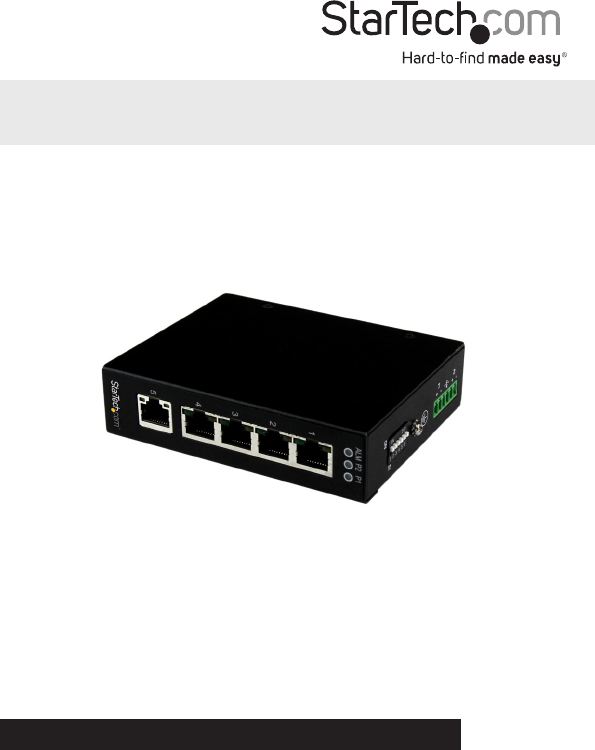

IES51000
5 Port Unmanaged Industrial Gigabit
Ethernet Switch
*actual product may vary from photos
Vedere la pagina 0
1 2 3 4 5 6 ... 11 12

Sommario

Pagina 1 - Ethernet Switch

Manual Revision: 08/15/2014For the most up-to-date information, please visit: www.startech.comDE: Bedienungsanleitung - de.startech.comFR: Guide de l&

Pagina 2 - FCC Compliance Statement

Instruction Manual7SpecicationsNumber of Ports 5Compatible Networks 10/100/1000 MbpsIndustry StandardsIEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IE

Pagina 3 - Table of Contents

Instruction Manual8Technical SupportStarTech.com’s lifetime technical support is an integral part of our commitment to provide industry-leading soluti

Pagina 4 - Product Diagram

Hard-to-nd made easy. At StarTech.com, that isn’t a slogan. It’s a promise.StarTech.com is your one-stop source for every connectivity part you need.

Pagina 5 - Top View

Instruction ManualFCC Compliance StatementThis equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to

Pagina 6 - Installation

Instruction ManualiTable of ContentsIntroduction ... 1Packagi

Pagina 7 - Instruction Manual

Instruction Manual1IntroductionPackaging Contents• 1 x Industrial Ethernet Switch • 2 x Wall-Mount Brackets• 1 x DIN-Rail Clip • 4 x Screws• 1 x

Pagina 8 - DIN-Rail Mounting

Instruction Manual2Top ViewLED Indicators1 x P1 (Power)Solid (Green): Power is connected and functioningO: No power input detected1 x P2 (Power)Solid

Pagina 9 - Hardware Installation

Instruction Manual3DIP Switch SettingsInstallationThe Network Switch is designed to sit on a at surface, or be securely mounted to either a wall or D

Pagina 10 - Specications

Instruction Manual42. Determine the desired location and orientation of the switch on the wall, and mark the bottom mounting notch location.3. Dep

Pagina 11 - Warranty Information

Instruction Manual5DIN-Rail Mounting1. Attach the DIN-Rail mounting bracket to the switch. 2. Hook the unit over the DIN-Rail and push the bottom o

Pagina 12

Instruction Manual6Hardware Installation1. Ground the device using the ground screw.2. Power the switch from a DC power supply (input range 12 – 58V
